Fittings

Description

All Fittings come with Clamps and Cages

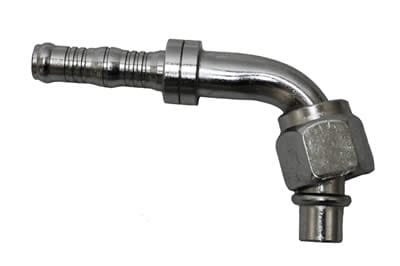

90 Degree FOR Fittings

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock	Steel BL	F.C. EZ
5/8 18	6	6	N	05 000 502	05 000 027	05 000 340	05 000 903
5/8 18	6	6	16 R134	05 000 503	05 000 149
5/8 18	6	6	1/4 swp	05 001 187	05 000 321
5/8 18	6	8	N	05 000 515	05 000 153		05 000 901
3/4 16	8	8	N	05 000 504	05 000 150	05 000 341	05 000 897
3/4 16	8 SD	8	N		05 000 374
3/4 16	8	8	1/4 swp	05 000 505			05 001 123
3/4 16	8	8	1/4 swp	05 000 977	Port on Side
3/4 16	8	8	16 R134	05 000 506	05 000 151	05 000 343	05 000 907
3/4 16	8	8	16 R134		Port on Side	05 001 092
3/4 16	8	8	13 R134	60 001 431
3/4 16	8	8	1/4 & 16		05 000 611
3/4 16	8 SD	8	16 R 134			05 000 858
3/4 16	8 SD	8	16 R 134			05 001 180
3/4 16	8	8	1/4 NPT				05 001 129
3/4 16	8	6	N	05 000 631	05 000 012	05 000 869
3/4 16	8	6	16 R134	05 000 628	05 000 608
3/4 16	8	10	N	05 000 516	05 000 154	05 000 435	05 000 894
3/4 16	8 SD	10	N		05 000 313
3/4 16	8	10	1/4 swp
3/4 16	8	10	16 R134	05 000 517	05 000 155	05 000 643
7/8 14	10	10	N	05 000 507	05 000 026	05 000 342	05 000 900
7/8 14	10 SD	10	N			05 000 368
7/8 14	10	10	1/4 swp	05 000 508	05 000 354
7/8 14	10	10	13 R134	05 000 509	05 000 024	05 000 344	05 000 906
7/8 14	10	10	13 R134	side port	05 000 013
7/8 14	10	10	M12swp	05 000 510
7/8 14	10	10	16 R134	05 000 511
7/8 14	10	12	N	05 000 518	05 000 156	05 000 436	05 000 944
7/8 14	10 SD	12	N		05 000 312
7/8 14	10	12	1/4 swp		05 000 610
7/8 14	10	12	13 R134	05 000 519	05 000 157	05 000 644
7/8 14	10	12	M12swp	05 000 520
7/8 14	10	8	N	05 000 689	05 000 357
7/8 14	10	16	N				05 001 019
1 1/16 14	12	10	N	05 000 711	05 000 707
1 1/16 14	12	12	N	05 000 512	05 000 152		05 000 912
1 1/16 14	12	12	13 R134	05 000 513
1 1/16 14	12	12	1/4 swp	05 000 514
1 1/16 14	12	16	N				05 001 018
1 1/16 14	12	16	13 R134				05 001 054

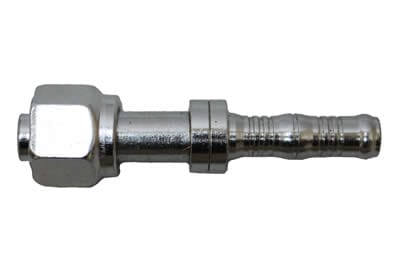

Straight FOR Fittings

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock	Steel BL	F.C. EZ
5/8 18	6	6	N	05 000 479	05 000 038		05 000 908
5/8 18	6	6	16 R134	05 000 480
5/8 18	6	6	1/4 swp	05 000 881		05 001 181
5/8 18	6	8	N	05 000 492	05 000 147		05 000 898
3/4 16	8	8	N	05 000 481	05 000 138	05 000 372	05 000 902
3/4 16	8	8	1/4 swp	05 000 482	05 000 611
3/4 16	8	8	16 R134	05 000 483	05 000 145	05 000 588
3/4 16	8	10	N	05 000 493	05 000 445		05 001 016
3/4 16	8	10	16 R134	05 000 494	05 000 127
3/4 16	8	6	N	05 000 499	05 000 087
7/8 14	10	10	N	05 000 484	05 000 043	05 000 373	05 000 899
7/8 14	10	10	1/4 swp	05 000 485
7/8 14	10	10	13 R134	05 000 627	05 000 086	05 000 587
7/8 14	10	10	M10swp	05 000 486
7/8 14	10	10	M12swp	05 000 487
7/8 14	10	10	16 R134	05 000 488	05 000 213
7/8 14	10	12	N	05 000 495	05 000 381		05 001 033
7/8 14	10	12	1/4 swp	05 000 496
7/8 14	10	12	13 R134	05 000 497	05 000 126
7/8 14	10	12	M12swp	05 000 498
7/8 14	10	8	N	05 000 569
1 1/16 14	12	12	N	05 000 489	05 000 146		05 001 027
1 1/16 14	12	12	13 R134	05 000 490	05 000 210
1 1/16 14	12	12	M12swp	05 000 491
1 1/16 14	12	16	N				05 001 055

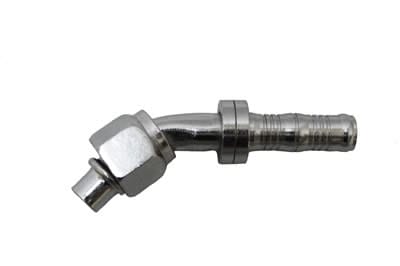

45 Degree FOR Fittings

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock	Steel BL	F.C. EZ
5/8 18	6	6	N	05 000 872	05 000 111
5/8 18	6	8	N				05 001 053
3/4 16	8	8	N	05 000 570	05 000 249	05 000 592	05 000 969
3/4 16	8	10	N	05 000 500		05 000 401	05 000 939
7/8 14	10	10	N	05 000 571	05 000 113	05 000 591	05 000 913
7/8 14	10	10	13 R134		05 000 473
7/8 14	10	12	N	05 000 501	05 000 648	05 000 402	05 000 940
7/8 14	10	16	N				05 001 024
1 1/16 14	12	12	N	05 000 572
1 1/16 14	12	16	N				05 001 021

Thread	Fitting	Hose	Port	Burgaflex
5/8 18	#6	#6	N	05 000 813
3/4 16	#8	#8	N	05 000 814
7/8 14	#10	#10	N	05 000 815
1 1/16 14	#12	#12	N	05 000 816

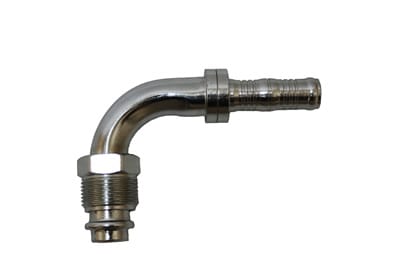

90 Degree MOR Fittings

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock	F.C. EZ
5/8 18	6	6	N	05 000 527	05 000 108	05 001 071
5/8 18	6	8	N	05 000 531	05 000 102	05 000 893
3/4 18	8	8	N	05 000 528
3/4 18	8	10	N	05 000 532
7/8 18	10	8	N	05 000 823
7/8 18	10	10	N	05 000 529	05 000 078	05 000 914
7/8 18	10	10	13 R134	05 000 699
7/8 18	10	10	1/4 swp	05 001 144
7/8 18	10	12	N	05 000 533	05 000 103	05 001 026
1 1/16 16	12	12	N	05 000 530

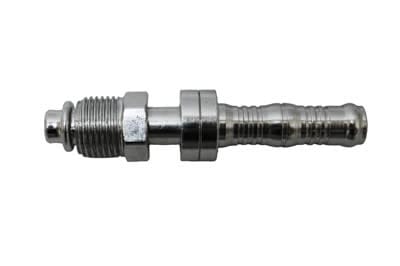

Straight MOR Fittings

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock	Steel BL	F.C. EZ
5/8 18	6	6	N	05 000 521	05 000 015		05 000 905
5/8 18	6	6	1/4 SWP			05 000 857
5/8 18	6	8	N	05 000 525	05 000 158		05 000 911
3/4 18	8	8	N	05 000 522
7/8 18	10	10	N	05 000 523	05 000 011		05 000 904
7/8 18	10	10	13 R134	05 000 698
7/8 18	10	12	N	05 000 526	05 000 159		05 000 941
1 1/16 16	12	12	N	05 000 524

Thread	Fitting	Hose	Port	Bead Lock
5/8 18	6	6	N	05 000 077
7/8 18	10	10	N
7/8 18	10	10	13 R134	05 000 123

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock
5/8 18	6	6	N	05 000 700	05 000 602
5/8 18	6	8	N	05 000 702	05 000 603
7/8 18	10	10	N	05 000 701	05 000 604
7/8 18	10	12	N	05 000 703	05 000 605

90 Degree MIO Fittings

ProAir Fittings

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock
5/8 18	6	6	N	05 000 651	05 000 160
5/8 18	6	8	N	05 000 539	05 000 400
3/4 16	8	8	N	05 000 537	BL1822
3/4 16	8	10	N	05 000 540
7/8 14	10	10	N	05 000 538
7/8 14	10	12	N	05 000 541

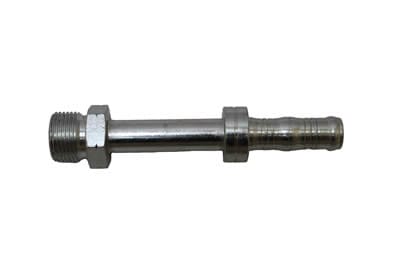

Straight MIO Fittings

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock
5/8 16	6	6	N	05 000 887	05 000 097
5/8 18	6	10	N
3/4 16	8	8	N	05 000 534	05 000 375
3/4 16	8	6	N		05 000 874
7/8 14	10	10	N	05 000 535	05 000 212
7/8 14	10	12	N	05 000 536
1 1/16 14	12	12	N	05 000 947	05 000 211

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock
3/4 16	6	6	N	05 000 676	05 000 979
3/4 16	8	8	N	05 000 575
7/8 14	10	10	N	05 000 677	05 000 980
7/8 14	10	12	N	05 000 577

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock
5/8 18	6	6	N	05 000 684	05 000 322
3/4 16	8	8	N		05 000 635
7/8 14	10	10	N	05 000 685	05 000 320
7/8 14	10	12	N

Thread	Fitting	Fitting	Length	Part #
5/8 18	6	6	1.81	05 000 607
5/8 18	6	6	1.85	05 000 929
3/4 16	8	8	2.21	05 000 477
7/8 14	10	10	2.34	05 000 478
7/8 14	10	10	2.55	05 000 930

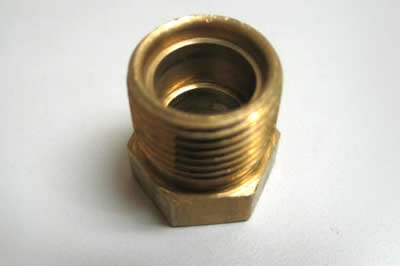

MIO Nuts

Thread	Material	Fitting	Tube	Part #
7/16 20	Brass	4 Flare		05 000 781
5/8 18	Brass	6 MIO		05 000 783
3/4 16	Brass	8 MIO		05 000 469
7/8 14	Brass	10 MIO		05 000 470
5/8 18	Steel	6 MIO	Straight	05 000 808
3/4 16	Steel	8 MIO	90 Degree	05 000 809
5/8 18	Alum	6 MIO	Straight	05 000 848
7/8 14	Alum	10 MIO	Straight	05 000 847
3/4 16	Brass, Copper	8 MIO	90 Degree	05 000 937
7/8 14	Brass, Copper	10 MIO	90 Degree	05 000 938

Flow	Part #
Standard	02 000 392
Hi Flow	05 000 217

	Thread	Attach	Part #
13mm 134	N	Weld	05 000 663
1/4 swp	N	Weld	05 000 708
13mm 134	1/4 swp	Screw	05 000 786
16mm 134	N	Weld	05 000 787

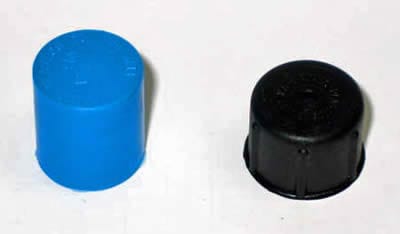

Caps

Color	Thread	Fits	W/Seal	Part #
Blue	N	#6 MOR	N	07 000 517
Blue	N	#8 MOR	N	07 000 655
Black	3/4 18	#8 MOR	Y	07 000 549
Blue	N	#10 MOR	N	07 000 518
Blue	N	#12 MOR	N	07 000 656
Black	7/16 20	#4 Flare	Y	02 000 430 or 07 000 544
Black	5/8 18	#6 MIO	Y	07 000 545
Black	3/4 16	#8 MIO	Y	07 000 546
Black	7/8 14	#10 MIO	Y	07 000 547
Black	5/8 18	#6 Expansion Block	Y	07 000 649
Black	7/8 18	#10 Expansion Block	Y	07 000 648
Yellow	N	#6 FOR	N	07 000 657
Yellow	N	#8 FOR	N	07 000 658
Yellow	N	#10 FOR	N	07 000 659
Yellow	N	#12 FOR	N	07 000 660
Blue	5/8 18	#6 FOR	Y	07 000 598
Blue	3/4 16	#8 FOR	Y	07 000 599
Blue	7/8 14	#10 FOR	Y	07 000 600

Color	Thread	Fits	Part #
Black	N	5/8″ Heater Tube	02 000 478

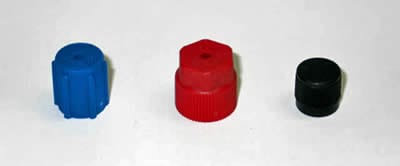

Color	Fits	Part #
Blue	13mm 134	02 000 393
Red	16mm 134	07 000 336
Black	R12	02 000 430 or 07 000 544

90 Degree Metric FOR Fittings

Thread	Fitting	Hose	Port	Burgaflex	Bead Lock	F.C. EZ
M18x	M18	6	N	05 000 716	05 000 361
M18x	M18	6	16 R134		05 001 036
M20x1.5	M20	6	N	05 000 629	05 000 085
M20x1.5	M20	6	16 R134		05 000 427
M20x1.5	M20	8	N	05 000 715
M20x1.5	M20	8	16 R134	05 000 585
M20x1.5	M20	10	N		05 000 186
	M22	10	N		05 000 609
M24x2.0	M24	10	N	05 000 630	05 000 382	15 000 118
M24x2.0	M24	10	13 R134		05 000 081
M27x2.0	M27	12	N	05 000 564

90 Degree FOR Fittings

Straight FOR Fittings

45 Degree FOR Fittings

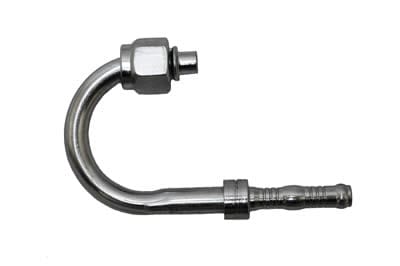

180 Degree FOR Fittings

90 Degree MOR Fittings

Straight MOR Fittings

45 Degree MOR Fittings

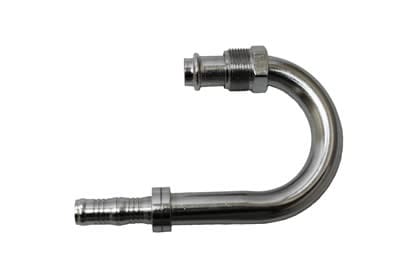

180 Degree MOR Fittings

90 Degree MIO Fittings

Straight MIO Fittings

90 Degree Bulkhead MIO Fittings

Straight Bulkhead MIO Fittings

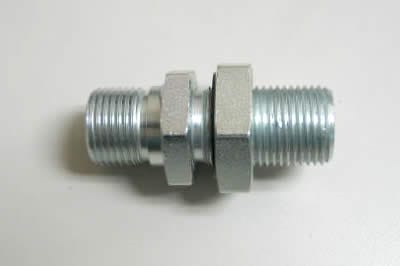

Bulkhead MIO MIO Fittings
